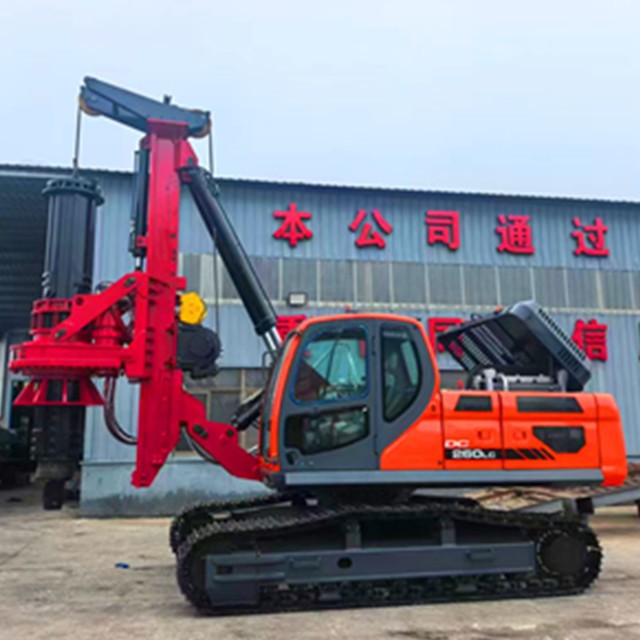

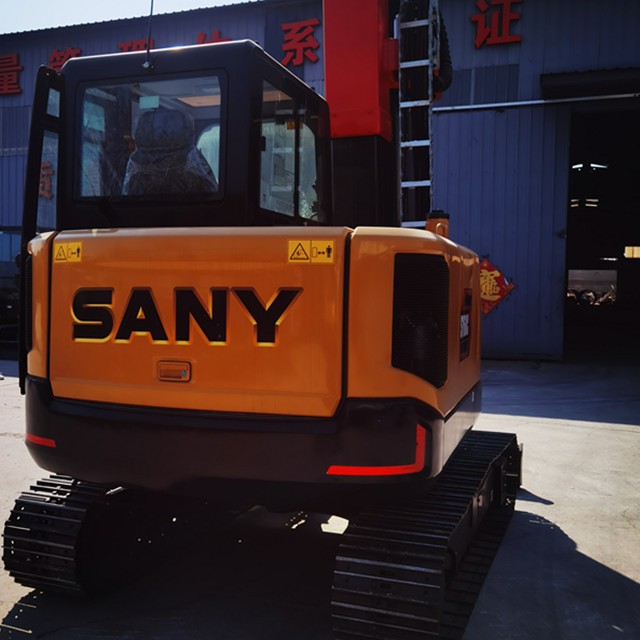

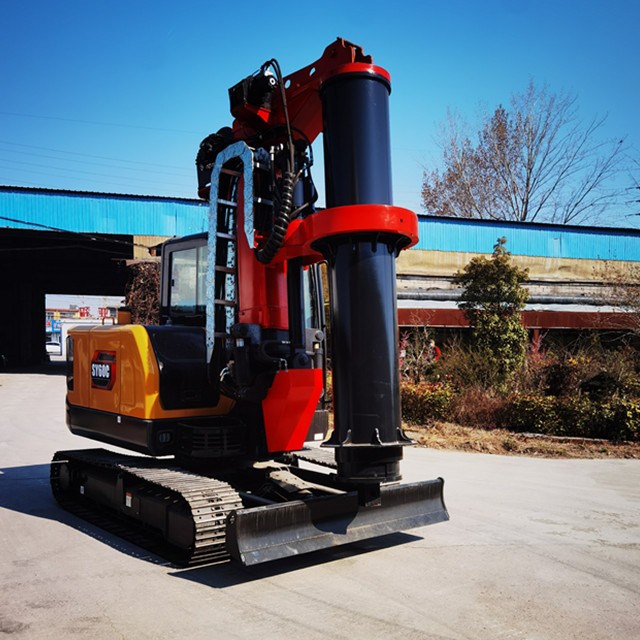

Sany 75 Mini Drilling Rig

Features:

1、Small fuselage, light weight, convenient transportation and transfer;
2、Small rotary drilling rig quickly reformed from excavator;
3、The construction process is diversified, and various drilling tools can be brought;
4、Small diameter rotary drilling rig with high work efficiency and low operation cost;
5、it has fast conversion device, light and flexible, low clearance operation;
6、Omnidirectional electric control sensing system to realize depth measurement and verticality detection;7、 lt can walk remotely, loading and unloading vehicles and transfer safely and efficiently.

Advantages

1, Dynamic system: Equipped with lsuzu 4jG3X engine, with a rated power of 55kW and more power surplus, it adoptshigh-pressure common rail technology to reduce fuel consumption at the rated point.

2, Hydraulic system: Equipped with a load sensitive system, it has higher work efficiency, better handling performance

3, The main valve diameter increases, the pressure loss decreases, the valve body oil passage is optimized, the hydraulicand superior flat performance.
force is reduced, and the overall operational energy efficiency is improved.

4, Upgraded Driver's Cabin - New Experience: interior upgrade The interior design is completely new, with the water cupadjusted to the front of the right control lever, reducing the space in the right air duct. The multifunctional panel, one keystart and throtle knob are combined into one, with a standard cup holder, 12V power port, and UsB interface, making itmore user-friendly.
5, 7-inch intelligent touch screen; The screen integrates functions such as Bluetooth, usB, phone, radio, etc., allowing forfree switching of multimedia audio sources and viewing of vehicle condition information at any time.

Parameter

Sany 60
Weight	8.5t
Max. drilling deep	13m
Drilling diameter	500mm to 1000mm
Engine brand	Kubota/Isuzu
Engine rated power	36KW/2000rpm
Max. lifting force of pressurization system	50Kn
Overwall working width	2000mm
Transportation size	3800*2000*3400mm
Sany 75
Weight	12t
Max. drilling deep	15m
Drilling diameter	350mm to 1500mm
Engine brand	Isuzu
Max. torque of rotary head	80Kn/m
Max. lifting force of the auxiliary winch	13Kn
Rotary head speed	40rpm
Engine rated power	55Kw/2000rpm
Max. lifting force of pressurization system	50kn
Track shoes width	250mm
Transportation size	7500*2220*3200mm
