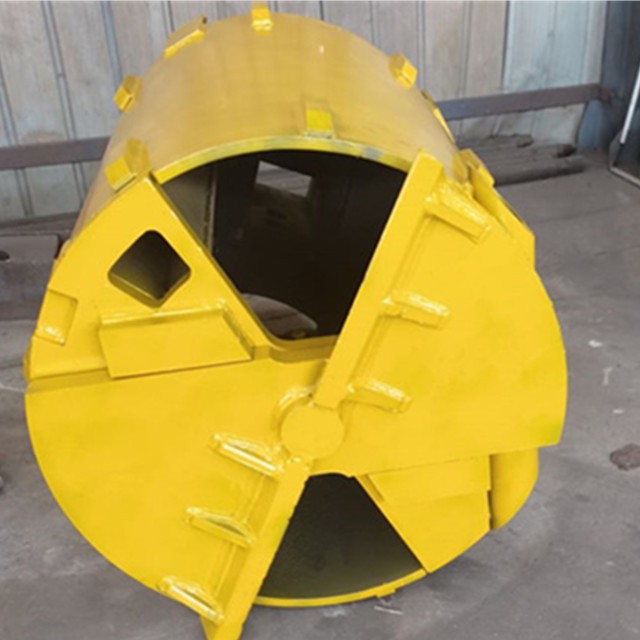

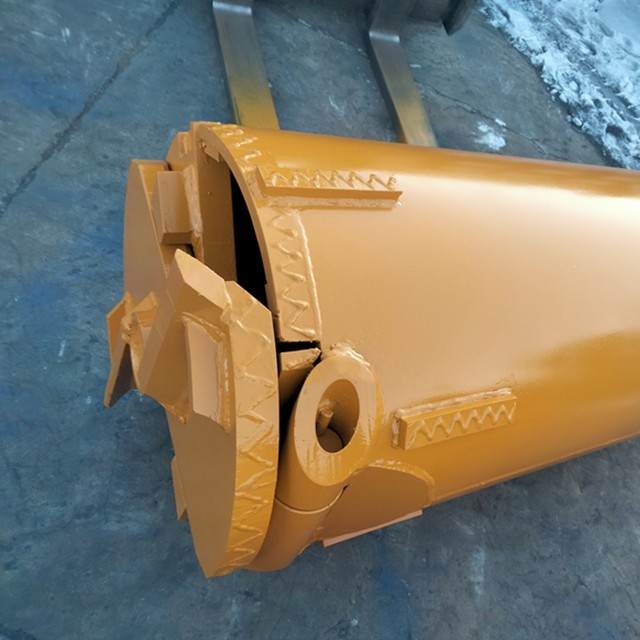

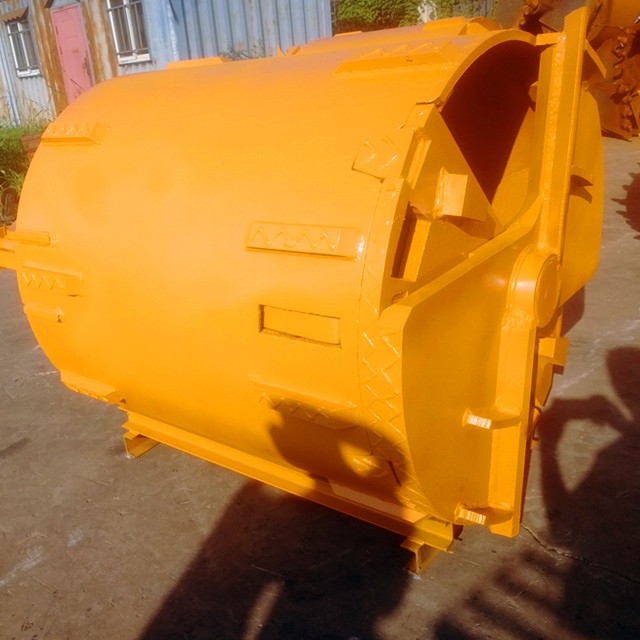

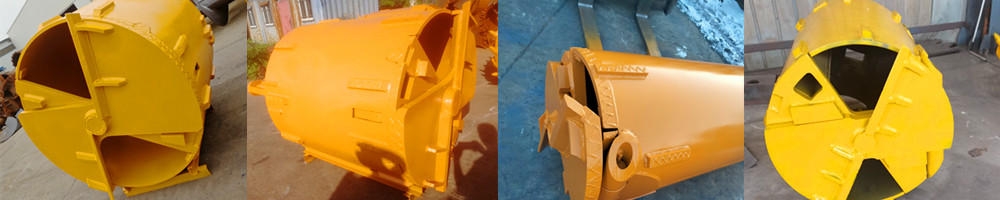

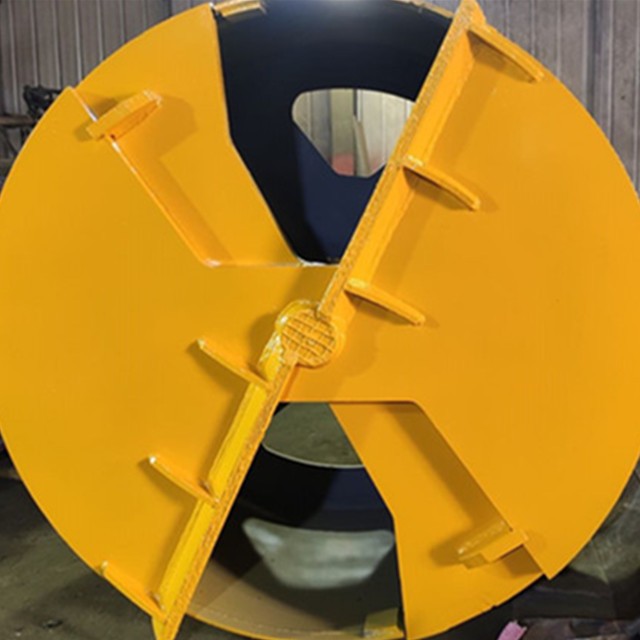

Cleaning Bucket
- Product Item : DC-Cleaning bucket
- Category： Drill Bucket & Auger
- Type: Double cut double bottom
- Bucket shell thickness: 16mm, 20mm, 25mm etc
- Kelly box: 100, 110, 150, 200, 250mm
- Bucket shell length: 1200, 1000, 800mm
Fetures
1，Kelly box 130mm/150mm/200mm/250mm customized.
2，Ventilation pipe.
3，Wear protection: hard facing or wear strips.
Mian Applications
1，Cleaning the bottom of bored holes.
Specifications of Soil Drilling Bucket
There are few type of soil drilling bucket: single cut double bottom, double cut double bottom
| Diameter(mm) | Shell Length(mm) | Thickness(mm) | Weight(KG) |
| 600 | 1200 | 16/20 | 740 |
| 700 | 1200 |
16/20 |
840 |
| 800 | 1200 |
16/20 |
915 |
| 900 | 1200 |
16/20 |
1025 |
| 1000 | 1200 |
16/20 |
1110 |
| 1100 | 1200 |
16/20 |
1295 |
| 1200 | 1200 |
16/20 |
1430 |
| 1300 | 1200 |
16/20 |
1590 |
| 1400 | 1200 |
16/20 |
1770 |
|
1500 |
1200 |
16/20 |
1990 |
|
1600 |
1200 |
16/20 |
2195 |
|
1700 |
1000 | 20 | 2590 |
|
1800 |
1000 | 20 | 2870 |
|
2000 |
800 | 20 | 3355 |
| 2200 | 800 | 20 | 3800 |
| 2500 | 800 | 20 | 4500 |
|
Other sizes can be customized |
|||
