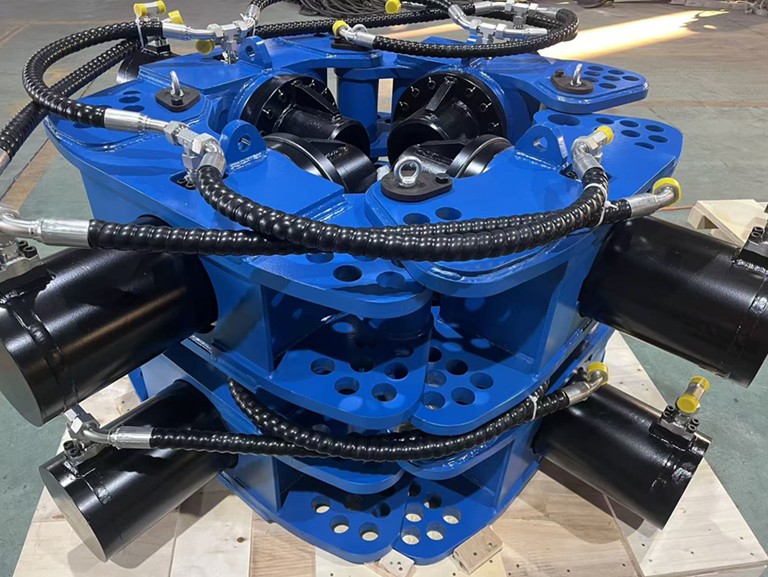

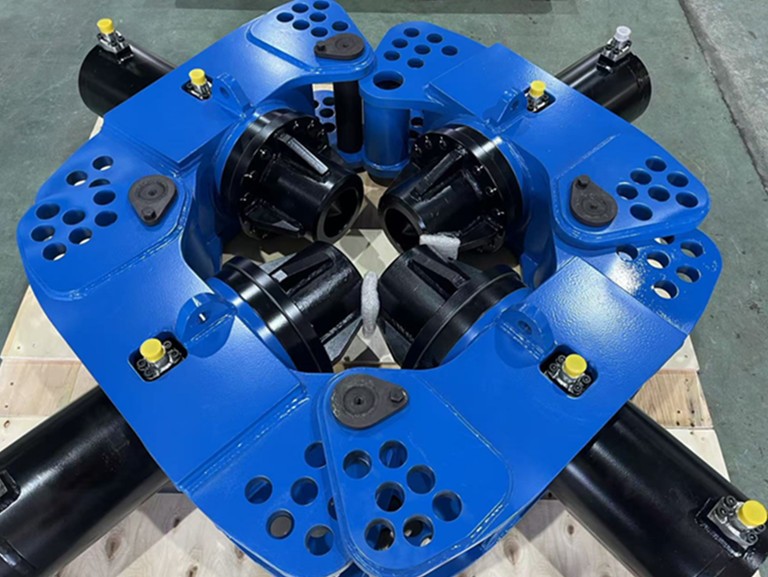

Hydraulic Pile Cutter Pile Breaker 500mm to 2000mm
- Product Item : Pile cutter pile breaker
- Category： Pile Breaker
- Cutting range: 500-2000mm
- Concrete Grande: Up to C50
- Excavator Tonnage: 20t-35t
- Warranty: one year
Main applications：
Cutting the concrete piles
Factory View
1，Diameter from 500mm to 2000mm.
2，One year warranty.
3，Improving working efficiency.
4，Long service life and high reliability.
Specification
|
SP800 Round Pile Breaker |
|||||||
| 6 Module | 7Module | 8Module | 9Module | 10Module | 11Module | 12Module | 13Module |
|
Cutting Range(mm) |
|||||||
| 500-600 | 650-800 | 850-1000 | 1050-1200 | 1250-1400 | 1450-1600 | 1650-1800 | 1850-2000 |
|
Excavator Tonnage(t) |
|||||||
| 20 | 22 | 26 | 27 | 30 | 32 | 35 | 36 |
|
Total Weight(kg) |
|||||||
|
2235 |
2720 | 3100 | 3480 | 3860 | 4240 | 4620 | 5000 |
|
Height of Single Cut(mm) |
|
|
|||||
| 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
|
SP500 Square Pile Breaker |
|
| Cutting range | 250-500mm |
| Max. drill rod Pressure | 320Kn |
|
Max. cylinder stroke |
150mm |
| Cylinder pressure force | 34.3Mpa |
| Heigh of single crush | 300mm |
| Weight | 1400kg |

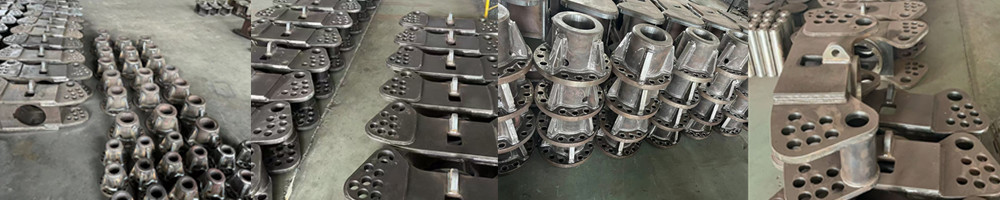

Pile Breaker Parts

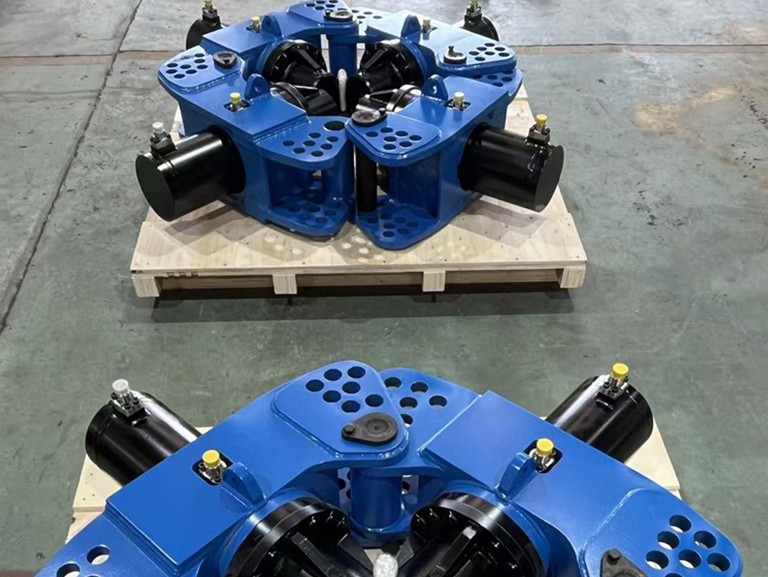

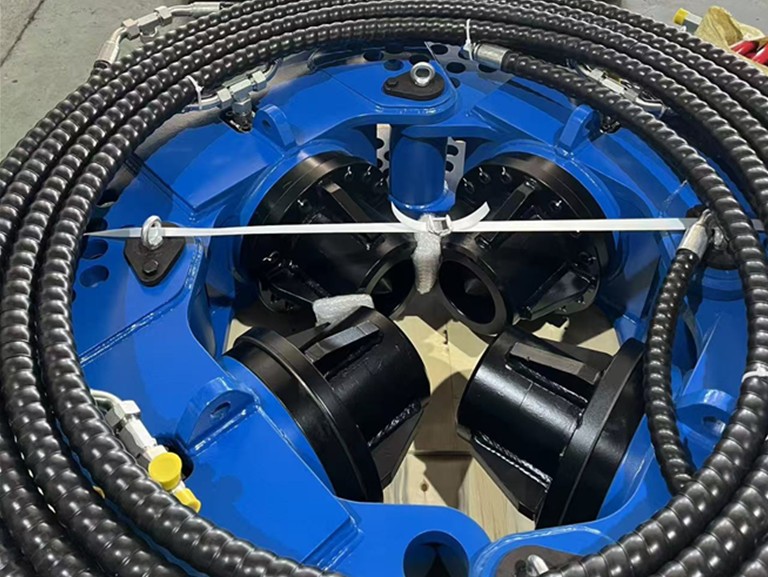

Packing and Shipping for Round pile breaker
Hydraulic pile breaker Case
