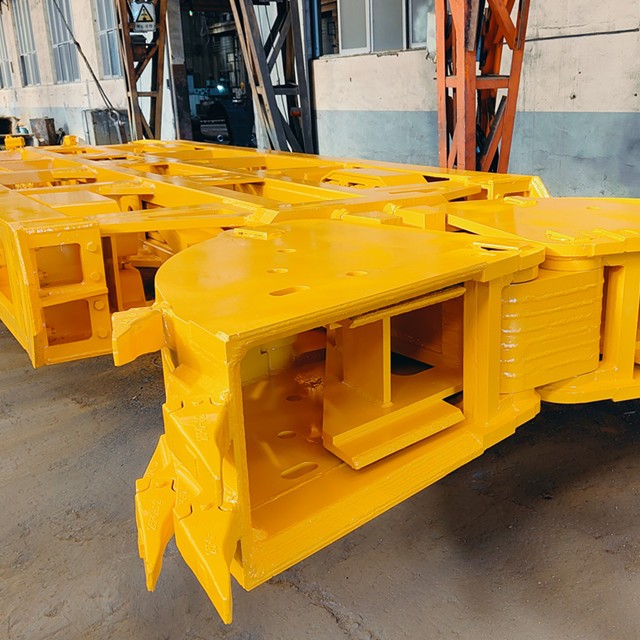

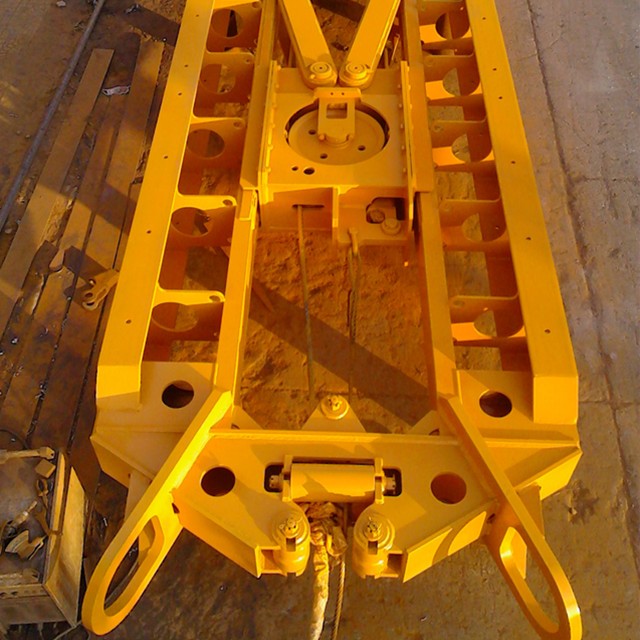

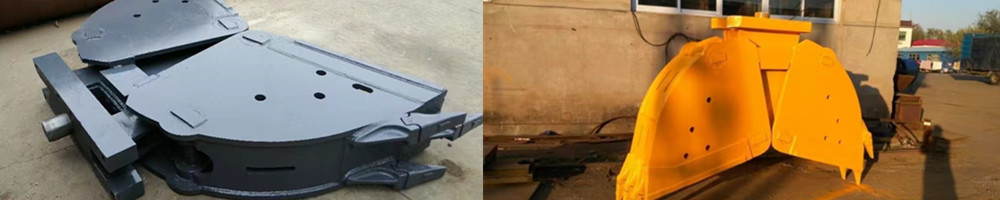

Mechanical diaphragm wall garb

Product Item : DC-Diaphragm wall
Category： Diaphragm Wall Grab & tools
Width:500, 600,800,1000mm etc.
Type: Hydraclic and Mechanical
Application: Foundationd diaphragm wall
Match with Bauer Soilmec Sany XCMG JINTAI etc
INQUIRY EMAIL

Diaphragm Wall Grab – Overview

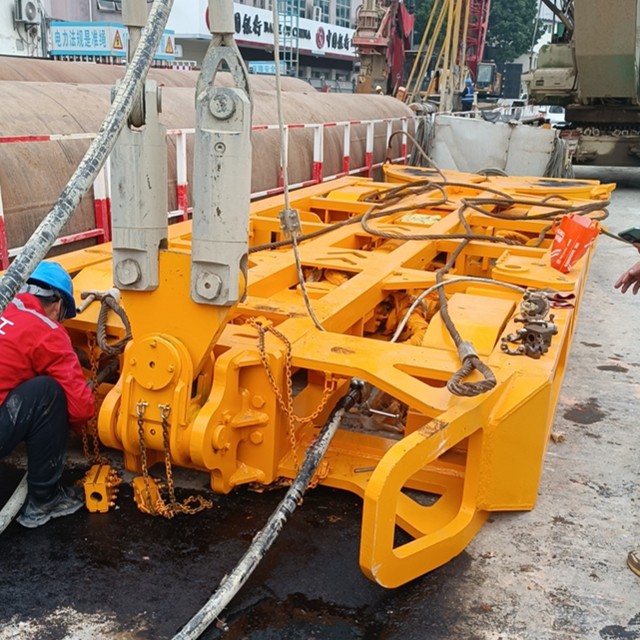

A diaphragm wall grab is a heavy-duty excavation tool used in the construction of diaphragm walls (also known as slurry walls). These walls serve as deep, reinforced concrete barriers for underground structures, such as basements, tunnels, cut-and-cover metro stations, and retaining walls.

Key Features & Functions

1. High-Efficiency Excavation
- Designed to dig deep trenches (typically 30m–60m, with some models reaching 100m+).
- Works in various soil conditions, including soft clay, sand, gravel, and moderately hard rock.

2. Hydraulic or Mechanical Operation
- Hydraulic grabs (more common today) use hydraulic power for precise control and strong cutting force.
- Mechanical grabs (rope-operated) are simpler but less efficient in hard ground.

3. Slurry Support System
- Excavation is performed under bentonite slurry, which stabilizes the trench walls to prevent collapse.
- After excavation, reinforcing cages are lowered, and concrete is poured via the tremie method.

4. Applications
- Underground metro & railway projects
- Deep basements & high-rise foundations
- Flood protection & seawalls

- Cut-off walls for dams and tunnels

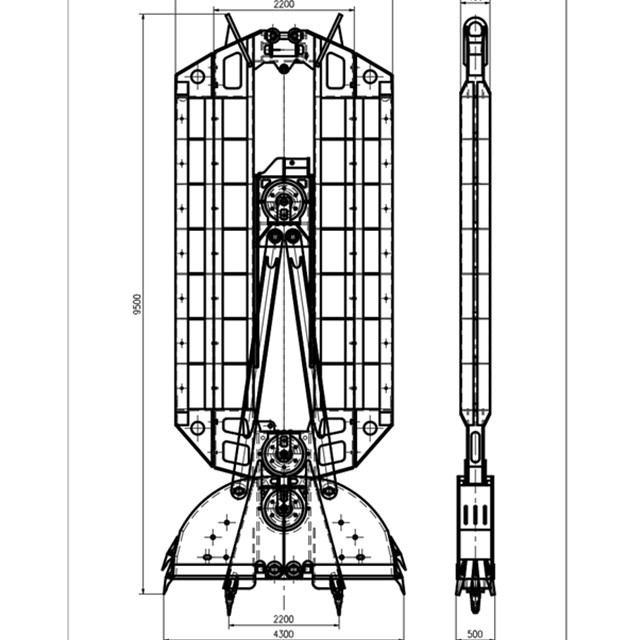

Parameter

Wall Width	mm	600	800	1000	1200	1500
Pulley quantity	pcs	6	6	6	6	6
Closing force	KN	1100	1100	1100	1100	1100
Closing & Opening time	Sec.	8.5	8.5	8.5	8.5	8.5
Max. opening shell width	mm	2800	2800	2800	2800	2800
Capacity	L	850	1200	1500	1900	2300
Weight	Kg	13000	14000	15000	16000	18000
Weight (heavy duty type)	Kg	19000	20000	21500	23000	25000

Advantages of Diaphragm Wall Grab

1, Deep excavation capability (deeper than sheet piles or secant piles).

2, Minimal vibration, making it suitable for urban environments.
3, High verticality control (critical for structural integrity).
4, Can be used in waterlogged or unstable soils.
