What is the hydraulic pile breaker

A pile cutter (also known as a pile breaker) is a piece of construction machinery designed for the rapid and efficient removal of irregular pile heads in foundation engineering projects. It functions by breaking away the excess concrete at the pile head to bring it down to the specified design elevation, thereby facilitating the subsequent construction of the building's superstructure.

Power Supply:The core high-pressure hydraulic power is typically supplied by an excavator, a crane, or a dedicated hydraulic pump station.

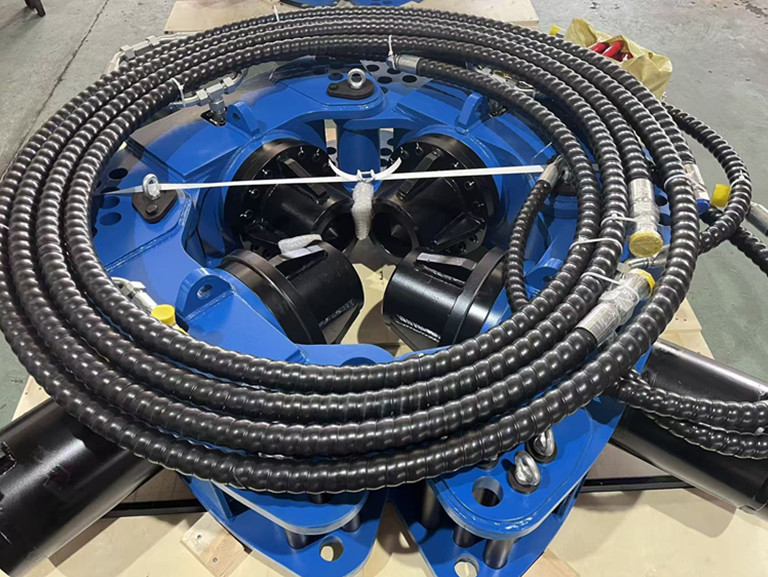

Modular Assembly:The equipment features a modular design utilizing pin-shaft connections; the number of modules can be freely increased or decreased to accommodate varying pile diameters.

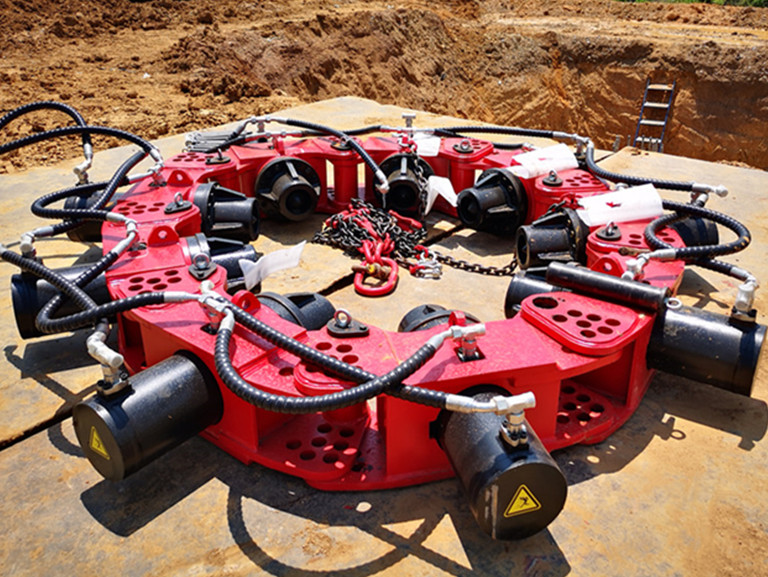

Synchronous Compression:Multiple hydraulic cylinders are arranged around the pile shaft, driving internal breaker rods to simultaneously exert inward pressure from various points along the same horizontal cross-section.

Expansion and Severing:Capitalizing on the inherent characteristic of concrete—strong in compression but weak in tension—the device causes the concrete at the pile head to fracture into blocks and break away.

Key Classifications

Common pile breaker type: Categorized into circular pile breakers and square pile breakers, designed specifically for cast-in-place piles and precast piles, respectively.

Applicable Pile Types: Widely utilized in the construction of various pile foundations—including cast-in-place piles as well as solid or hollow precast tubular piles—for projects such as high-speed railway bridges and general industrial or civil buildings.

Main Advantages

High Efficiency and Labor Savings: Compared to traditional manual methods using pneumatic picks to chip away at piles, the efficiency of pile cutting is increased several-fold, significantly reducing the physical labor burden on workers.

Safety and Environmental Friendliness:The operation utilizes a static expansion and fracturing process, resulting in extremely low noise levels, an absence of violent vibrations, and minimal dust dispersion.

Quality Control: The resulting cut surface is flat and even; unlike manual chipping or traditional blasting methods, it causes no structural damage to the interior of the pile foundation or to the reinforcing steel bars.
