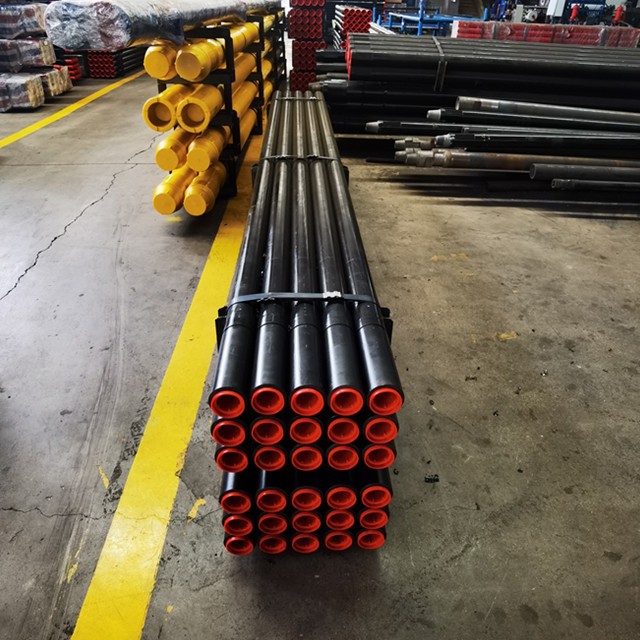

Water well drill rod
- Category： DTH Tools
- Diameter from 76mm to 114mm
- Length 1500mm to 4500mm
- Pipe thickness 5mm to 10mm
- API2 3/8REG, NC26, NC31, NC35
Drill rod is a seamless steel pipe with the API thread connection, which is used for connecting the drilling rig.
1, General drill rod for mines
| General drill rod for mines | Connecting Thread | OD of Drill rod(ΦD)mm | Length(L)mm |
Wrench size(G)mm |
Wrench thickness(B)mm | Wall tickness(mm) |
| 64 Drill rod |
2" NG |
64 | 1500/2000/3000 | 55 | 45 | 4/5 |
| 76 Drill rod |
API2 3/8REG |
76 |
1500/2000/3000 |
57/64 | 50 | 4/5/5.5/6.35 |
| 89 Drill rod |
API2 3/8REG
|
89 |
1500/2000/3000 |
70 | 50 | 5.5/6.35/8.35 |
| 102 Drill rod |
API3 1/2REG |
102 |
1500/2000/3000 |
85 | 55 | 6.35/8.35 |
2, Integrateddrill rod for mines
|
Integrateddrill rod for mines |
Connecting Thread |
OD of Drill rod(ΦD)mm |
Length(L)mm |
Male joint length(L1)mm |
Female joint length(L1)mm |
Wall thickness(mm) |
| 64 Drill rod |
2”NG T48 |
64 | 3000/4000/5000/6000 | 250 | 250 | 4/5/6 |
| 76 Drill rod |
API2 3/8REG |
76 |
3000/4000/5000/6000 |
250 | 320 | 5.5/6.35/8.35 |
| 89 Drill rod |
API2 3/8REG |
89 |
3000/4000/5000/6000 |
250 | 250 |
6.35/8.35/10 |
| 102 Drill rod |
API2 7/8REG |
102 |
3000/4000/5000/6000 |
300 | 300 |
6.35/8.35/10 |
| 114 Drill rod |
API3 1/2REG BECO3 1/2 |
114 |
3000/4000/5000/6000 |
300 | 300 |
6.35/8.35/10 |
| 127 Drill rod |
API3 1/2REG BECO3 1/2 |
127 |
3000/4000/5000/6000 |
250 | 270 | 9/12.7/19 |
| 140 Drill rod |
API4 1/2REG |
140 |
3000/4000/5000/6000 |
330 | 330 | 10/12.7/19 |
3, Water well drill rod
|
Water well drill rod |
Connecting Thread |
OD of Drill rod(ΦD)mm |
Length(L)mm |
Wrench size(G)mm |
Wrench thickness(B)mm |
Wall thickness(mm) |
| 76 drill rod |
API2 3/8REG |
76 | 1500/2000/3000/4500 | 57/64 | 50 | 5/5.5/6.35/8.35 |
| 89 drill rod |
NC26 |
89 |
1500/2000/3000/4500 |
70 | 50 |
6.35/8.35/10 |
| 102 drill rod | NC31 | 102 |
1500/2000/3000/4500 |
85 | 55 |
6.35/8.35/10 |
| 114 drill rod | NC35 | 114 |
1500/2000/3000/4500 |
95 | 55 |
6.35/8.35/10 |
4, Tricone bit drill rod
|
Tricone bit drill rod |
Connecting Thread |
OD of Drill rod(ΦD)mm |
Wall thickness(mm) |
Length(L)mm |
| 146 |
API41/2REG |
146 | 12.7/19/25 | 4000-9144 |
| 159 |
BECO4 ’’ |
159 |
12.7/19/25 |
4000-9144 |
| 178 |
BECO4 1/2’’ |
178 | 19/25 | 4000-10668 |
| 194 |
BECO5 1/4’’ |
194 |
19/25 |
4000-12192 |
| 219 |
BECO6 ’’ |
219 | 25.4/31 | 4000-10668 |
| 235 |
BECO6 ’’ |
235 | 31.75 |
4000-10668 |
| 273 |
BECO8 ’’
|
273 | 25/31/38.1 |
4000-10668 |
5, Reverse circulation drill rod
|
Reverse circulation drill rod |
Connecting Thread |
OD of Drill rod(ΦD) mm |
Outer pipe thickness | Inner pipe OD | Inner pipe thickness |
Wrench size(G)mm |
Wrench thickness(B)mm |
Min. dia.(d)mm |
Length(L)mm |
| 76 |
3 ”Remet |
76 | 5 | 42 | 5 | 70 | 32 | 30 | 1500/2000/3000 |
| 89 |
3 1/2”Remet |
89 | 5.5 | 50 | 6.5 | 75 | 40 | 35 | 1500/3000/5000/6000 |
| 102 |
4”Remet 4 1/2”Metzke DR102 |
102 | 6.35 | 60 | 5 | 90 | 45 | 40 |
1500/3000/5000/6000 |
| 114 |
4 1/2”Remet 4 1/2”Metzke DR115 |
114 | 6.35 | 64 | 5 | 102 | 45 | 45 |
1500/3000/5000/6000 |
| 127 |
4 1/2”Remet |
127 | 9 | 89 | 5.5 | 118 | 50 | 45 |
1500/3000/5000/6000 |
Product details

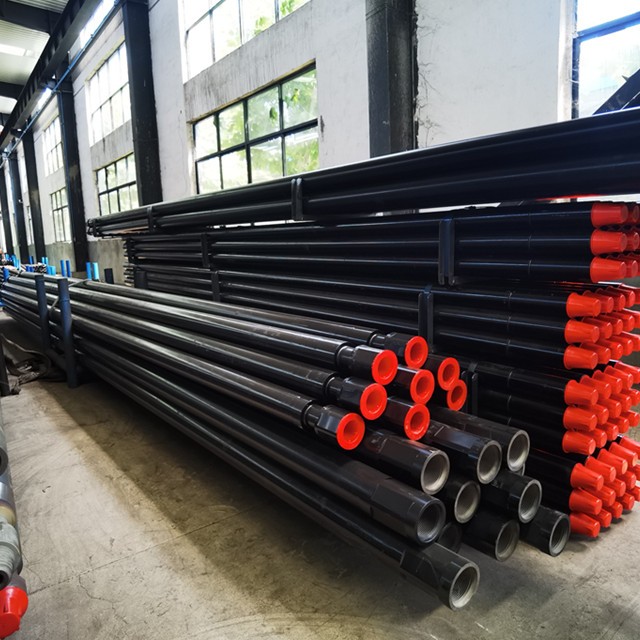

Production
Factory view

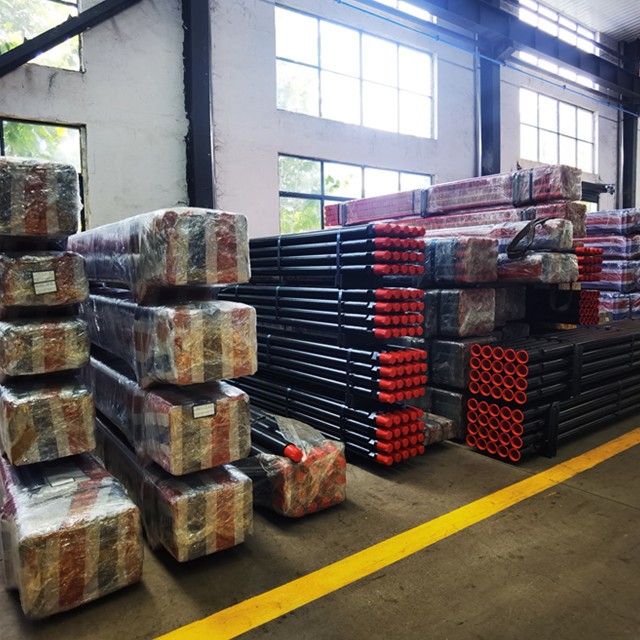

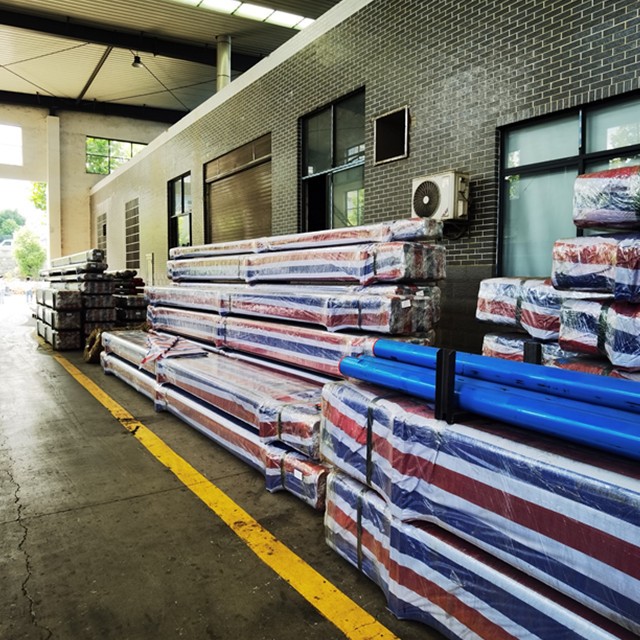

Packing and delivery
Jobsite
